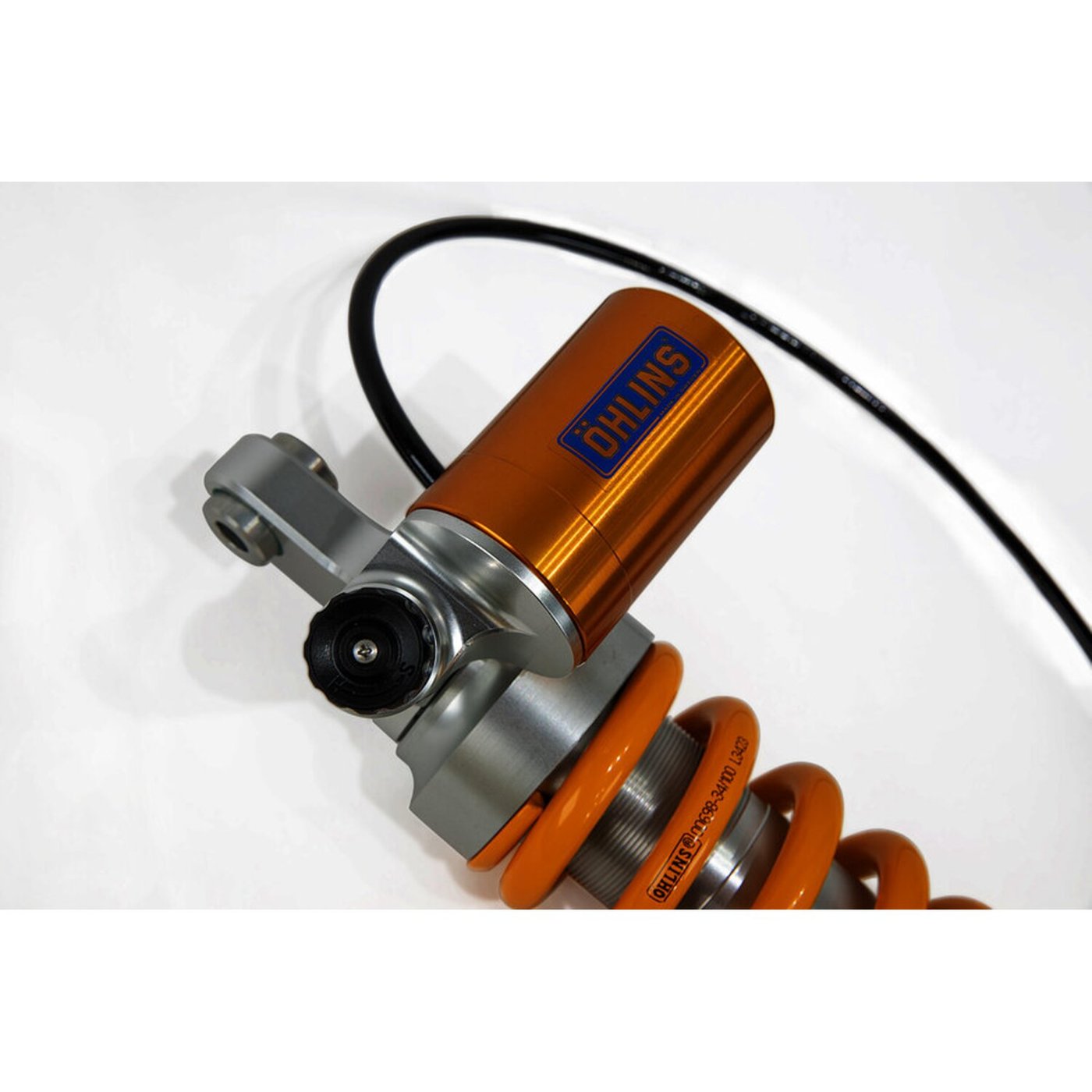

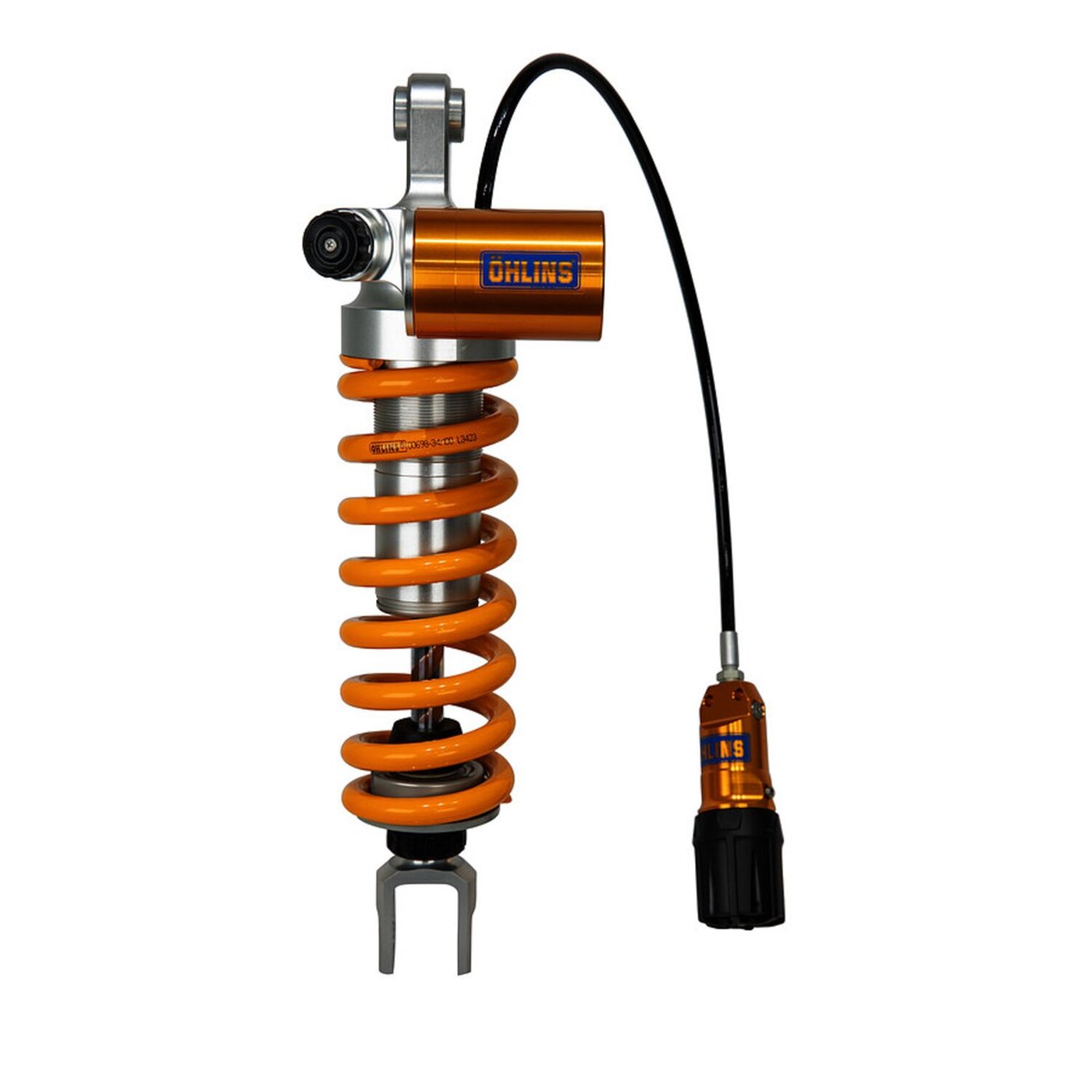

Öhlins Öhlins, STX46 Adventure rear shock absorber HD 250. 398.5mm

Description

ÖhlinsÖhlins, STX46 Adventure rear shock absorber HD 250. 398.5mm  701718

fits  21-24 RA1250 Pan America

The STX 46 is a monotube high pressure gas type shock absorber 46mm piston diameter with a internal reservoir. Comes with adjustable preload and R1 rebound damping adjustability. Complete with installation instructions. – Yellow spring – Clear body – Single tube – Piston diameter: 46mm – Monotube high pressure gas type of shock absorber with external ‘piggy back’ reservoir – Adjustable rebound damping with adjuster wheel above the end eye – Adjustable compression damping with adjuster wheel or slot on reservoir – Adjustable hose mounted hydraulic spring preload adjuster – Length: 398.5mm – Stroke: 80mm – Rate N/mm: 100 N/mm – Mounted spring: 962261 (00698-34). Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.



Δείτε περισσότερα στον κατάλογο
