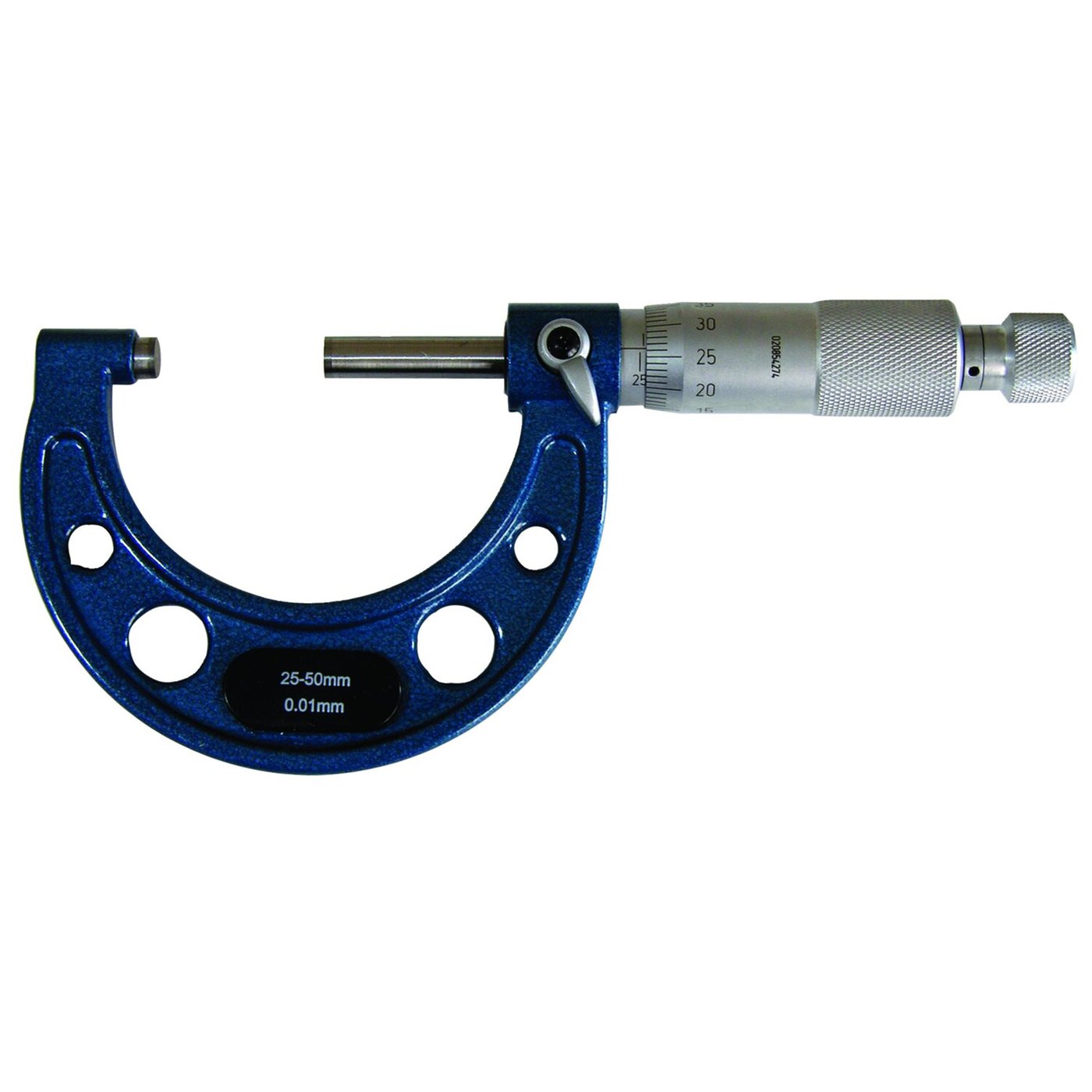

MIB MIB, outside micrometer, DIN 863. 25-50mm

Description

MIBMIB, outside micrometer, DIN 863. 25-50mm  954312

fits

For accurate outside measurement of small objects. Supplied with a ‘Standard’ gauge of 25mm length. This gauge is used to check and set the micrometer for correct measuring. The Standard gauge length is fixed and manufactured, like the micrometers, according to DIN 863. – Range (mm): 25-50 – A (mm): 14.0 – B (mm): 3.5 – C (mm): 38 – L (mm): 57 – carbide measuring faces, ground and lapped – scale satin chrome no-glare finish – ligtweight coated frame – spindle Ø 6.5 mm – thread pitch 0.5 mm – scale 0.01 mm – with auto-stop ratchet – accuracy DIN 863 – in case



Δείτε περισσότερα στον κατάλογο Workshop
