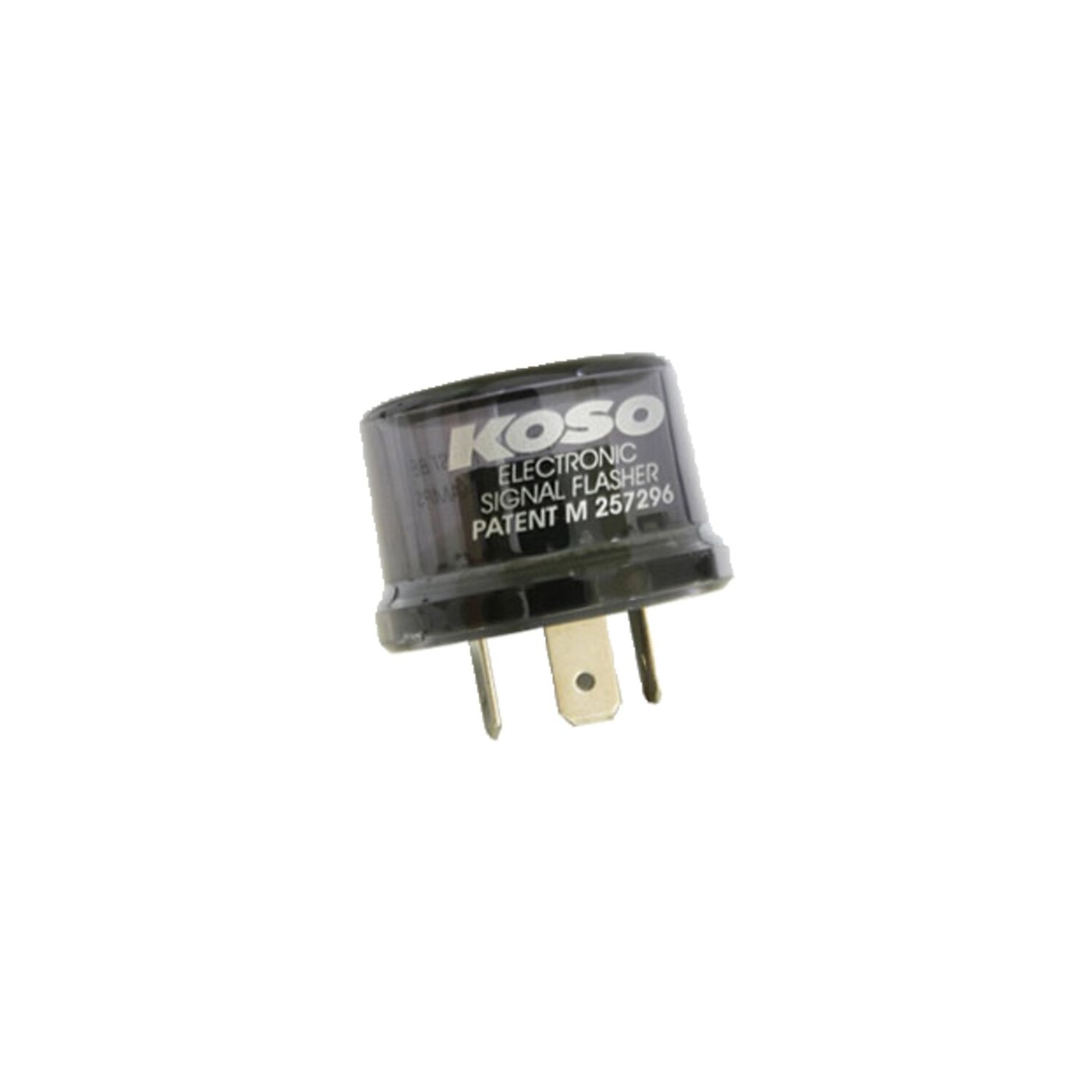

Koso KOSO, digital 12V turn signal flasher relay

Description

KosoKOSO, digital 12V turn signal flasher relay  942318

fits  Universal

Universal relay. 1 to 80W. With ‘defect detection’, which will rise the flash rate of the intact turn signal. Can be used with LED or a combination LED and ‘regular’ incandescent bulbs. – For LED or LED & incandescent bulbs – Voltage: 12V – Load range: 1W to 80W – Connections: 49 P = battery input, (12V +) 31G = ground (-), (GND) 49a L = light (for indicator switch) – Connections on the relay: Black to P (power supply 49) brown (49a) L (signal) green to 31(-) (GND) – For vehicles with 3 pins and 2 Pin-occupancy (49, 49a): Green (separately) to GND (31) and to ground – For vehicles with 3-pins and 3-pin connectors (49, 49a, 31): Use green (adapter plug) – Dimensions: diameter: 37 mm height: 25 mm – Includes: 1 x relay, 1 x ground cable, 1 x adapter cable Honda/Kawasaki/Yamaha, 1 x rubber mount
