Elektronikbox Axel Joost Elektronik, Rear Light US conversion module

Description

ElektronikboxAxel Joost Elektronik, Rear Light US conversion module  954149

fits

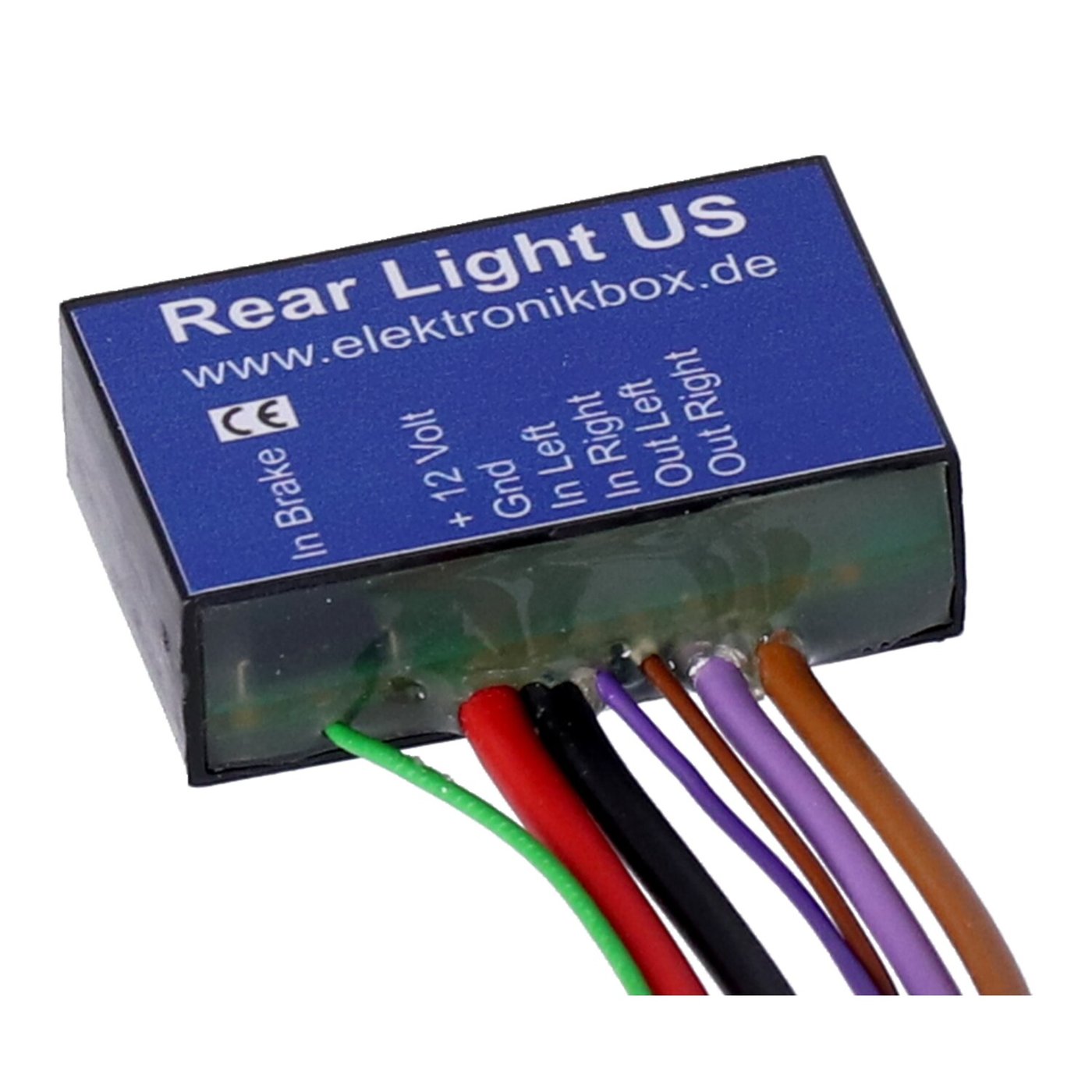

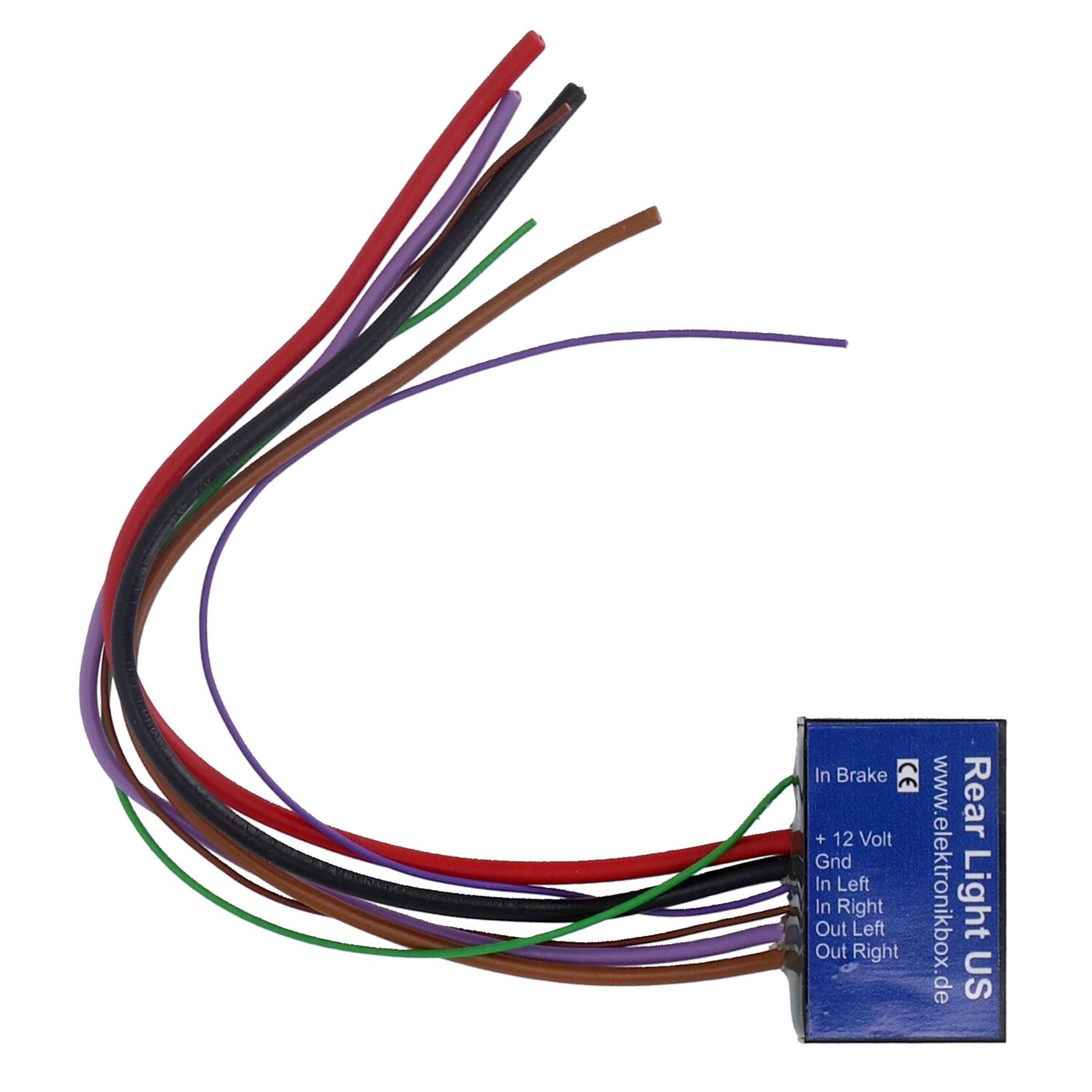

Used to change an EU taillight to US requirements, used when exporting to the US. Most US bikes have a combined taillight/brakelight, where the taillight bulb shines brighter when the brake is applied. The ‘Rear Light US’ is a micro-controller based module that converts the three signals from separate turn signals and 1 taillight/brakelight into two outputs for a taillight/brake/turn signal combination set-up. For converting an EU-bike to the regulations of the US-market, the Rear Light US is the perfect choice. – Dimensions: 40 mm x 25 mm x 12,5 mm – Body material: ABS with waterproof poured 2k epoxy resin – Input voltage range: 7 – 18 Volt – Connections: Inputs 0.14 mm², Outputs 0.75 qmm – Output power: Max. 21 Watt / Output – Maximum ambient temperature: 80 degree Celsius
