Elektronikbox Axel Joost Elektronik, Minimal Indicator module

Description

ElektronikboxAxel Joost Elektronik, Minimal Indicator module  954152

fits

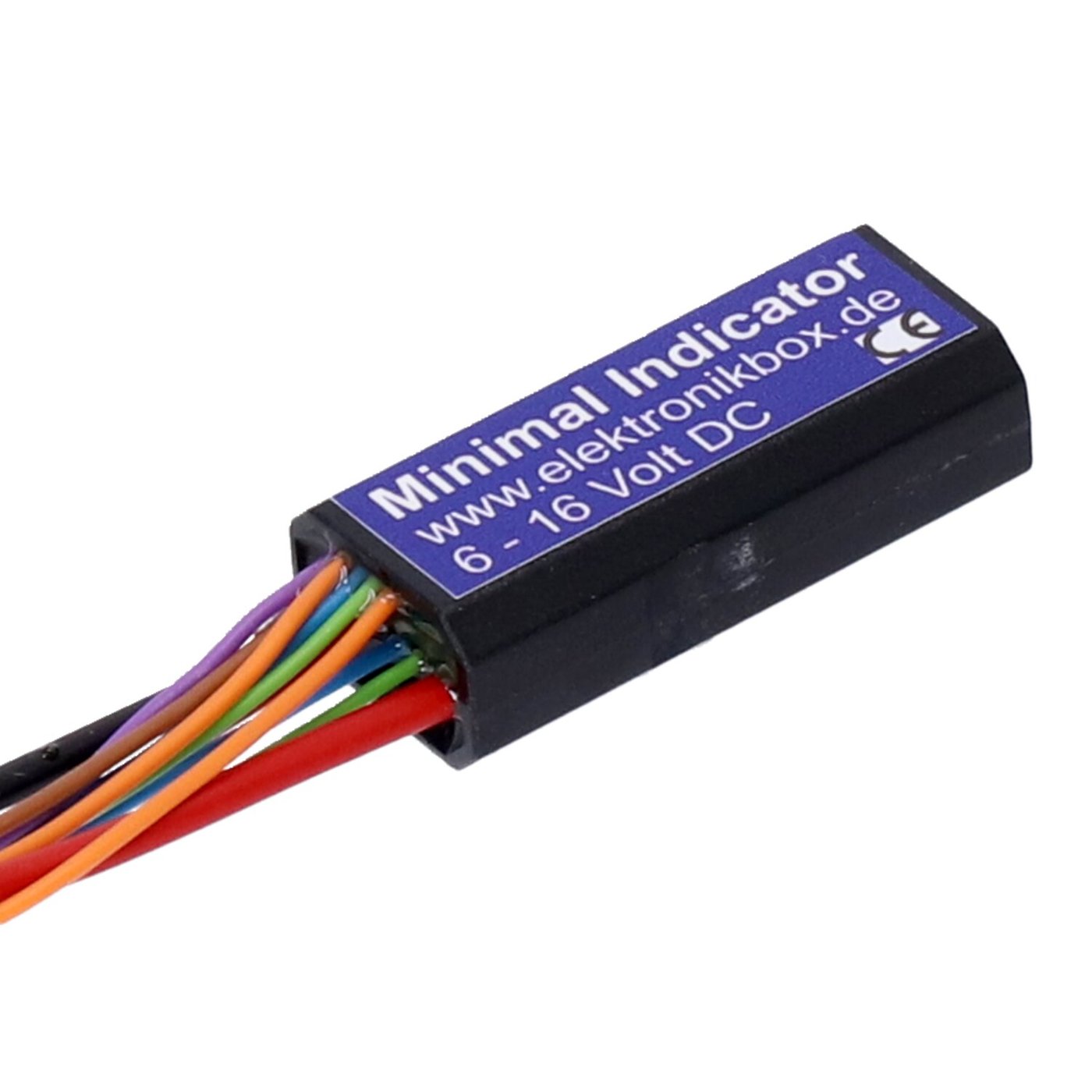

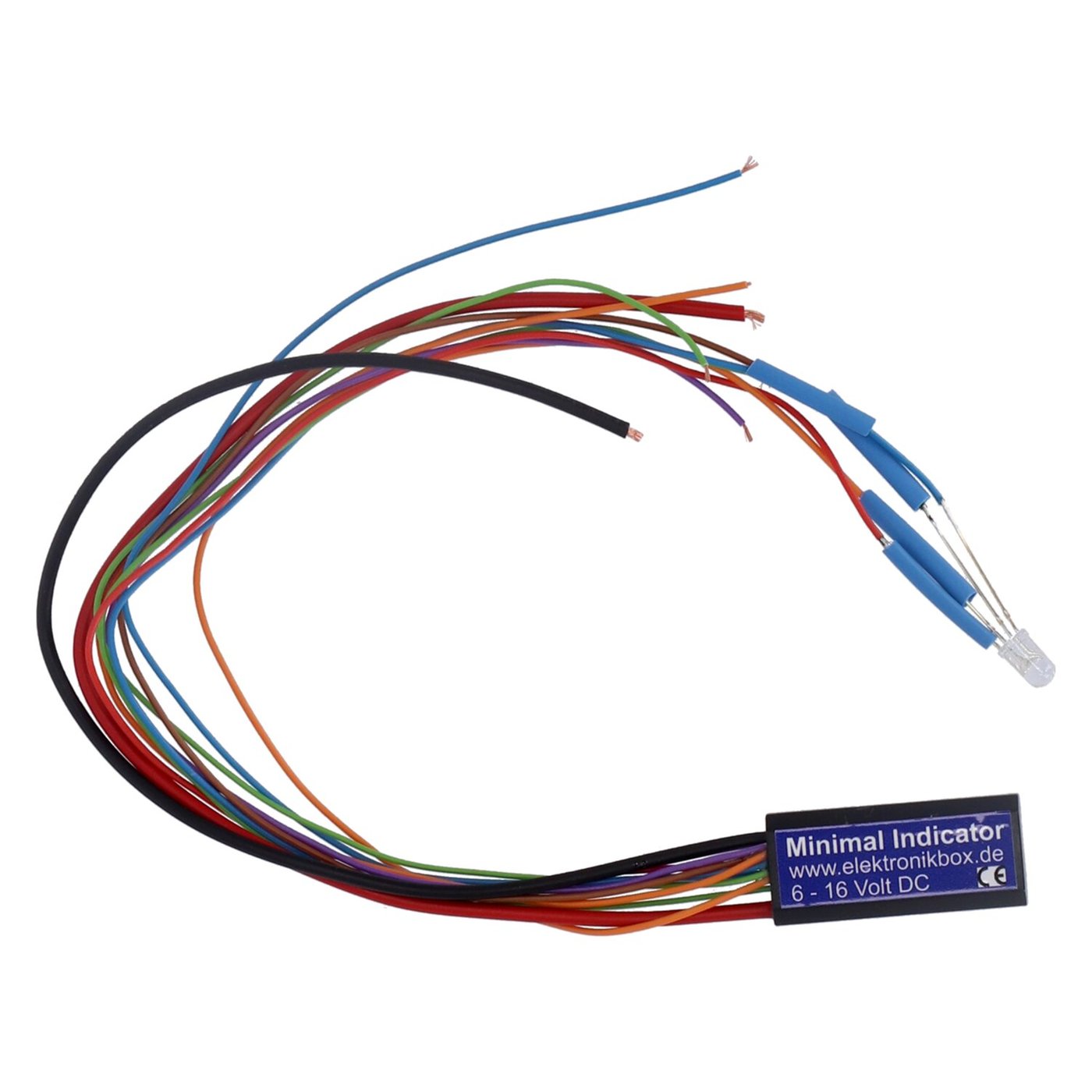

This module can help simplify your dash for a much cleaner look. This small module (installs inside headlamp or even inside the handlebar) can power a 3-color LED to show turn signal, high beam, neutral or oil pressure LED indicators. Up to 4 indicators can be clearly displayed at the same time on a single 3-color LED showing Red, green, blue or orange. Even 2 or 3 signals can be shown simultaneously. – Dimensions: 38 mm x 16 mm x 11 mm – Body material: ABS with waterproof poured 2k epoxy resin – Input voltage range: 7 – 18 Volt – Connections: 0.14 mm², 20 cm – Maximum ambient temperature: 80 degree Celsius



Δείτε περισσότερα στον κατάλογο V-Twin
