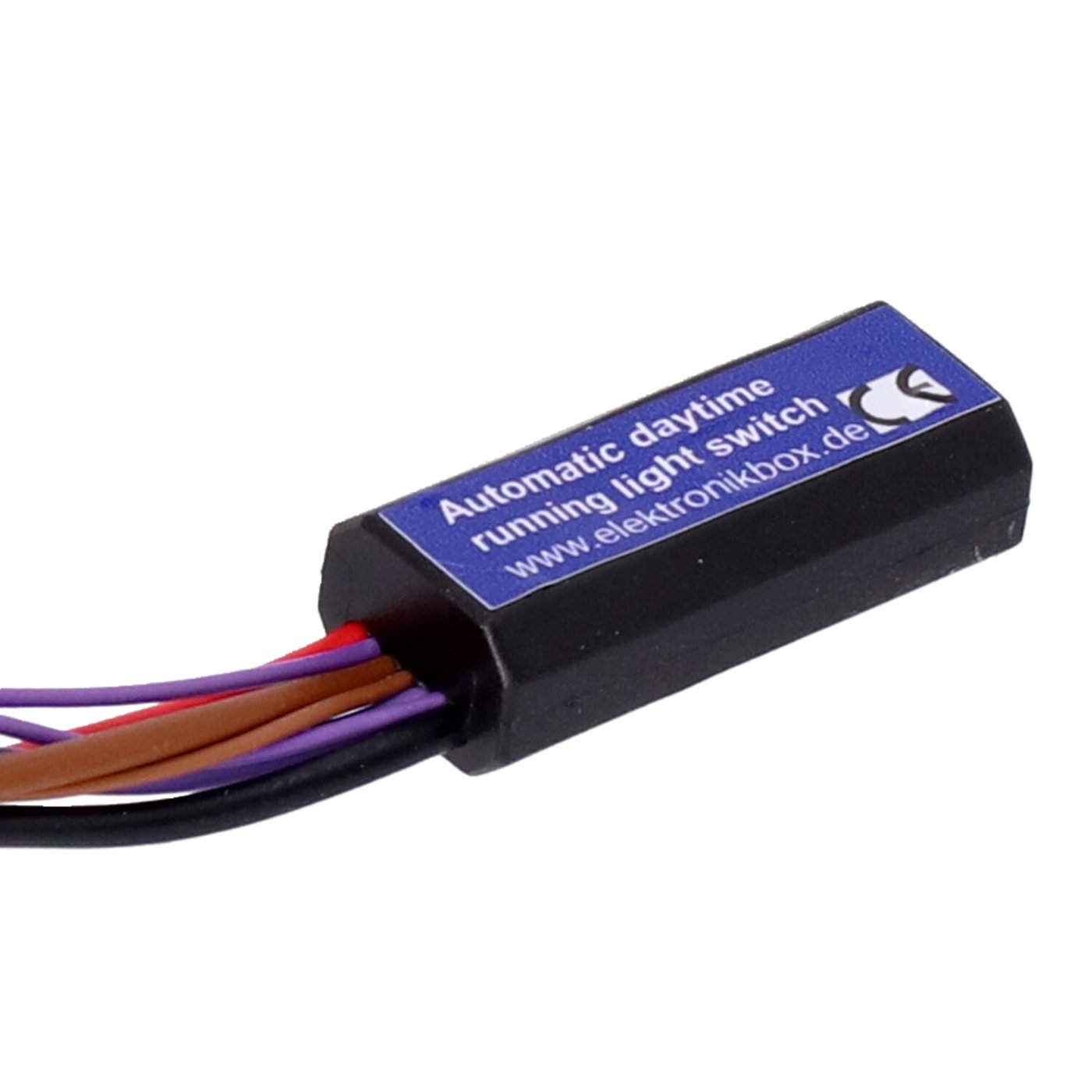

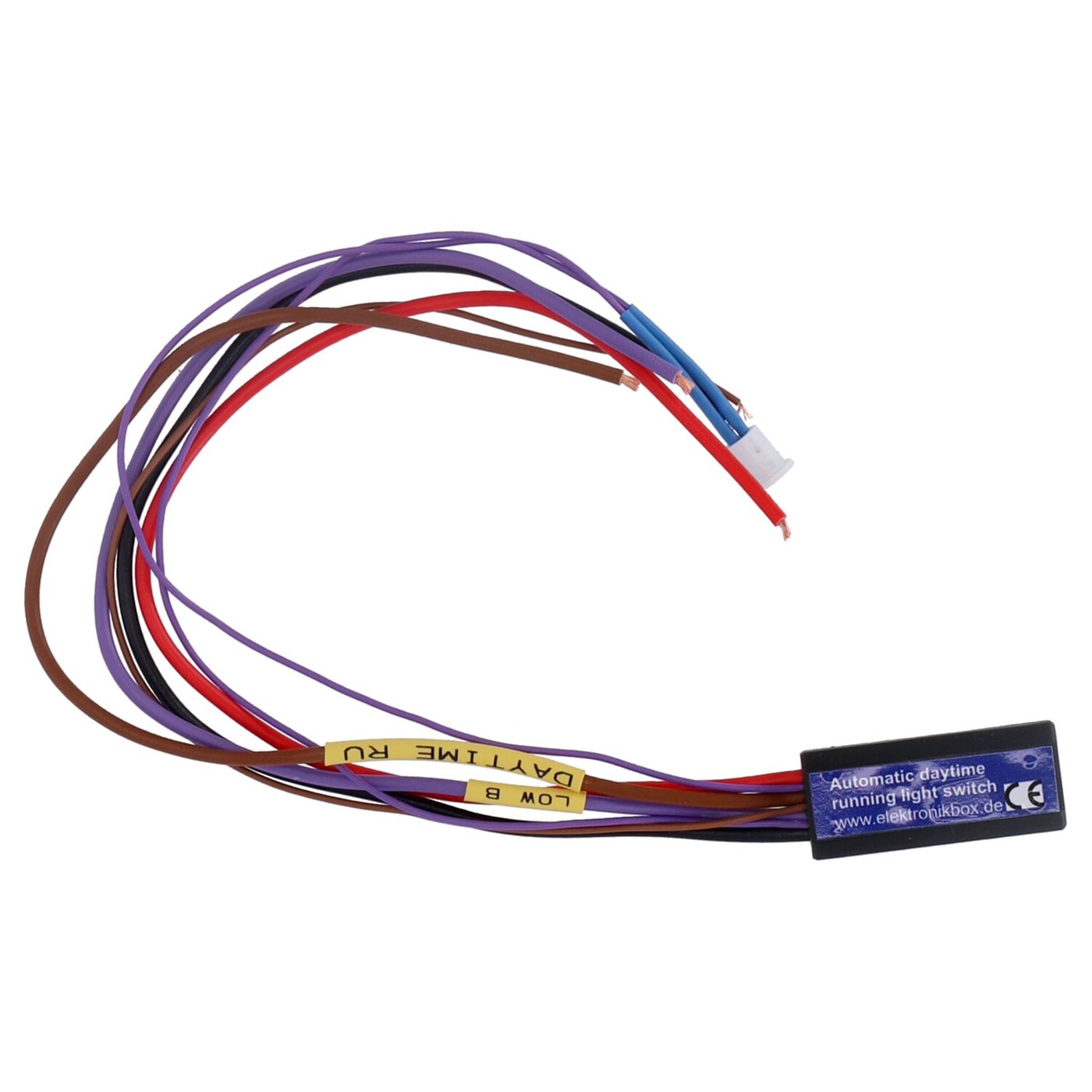

Elektronikbox Axel Joost Elektronik, Daytime Running Light switch

Description

ElektronikboxAxel Joost Elektronik, Daytime Running Light switch  954138

fits

This Module controls the automatic switching from DLR (Daytime Running Light) to low beam headlamp through a sensor. The switch time from DLR to low beam is less than 0.5 seconds, like when driving into a tunnel. Switch time duration from low beam to DLR is a slower 3 seconds, so light reflections of other traffic or street lamps will not influence low beam. Sensitivity can be adjusted and stored in 60 steps. – Dimensions: 38 mm x 16 mm x 11 mm – Body material: ABS with waterproof poured 2k epoxy resin – Sensor: 4.1mm LDR cell, front surface encapsulated against moisture – Connections: 0.14 qmm for input, 0.75 qmm for power outputs – Maximum output power: 2 x 60 Watt
