Compu-Fire Compu-Fire, ignition module. Electronic advance. Kickstart

Description

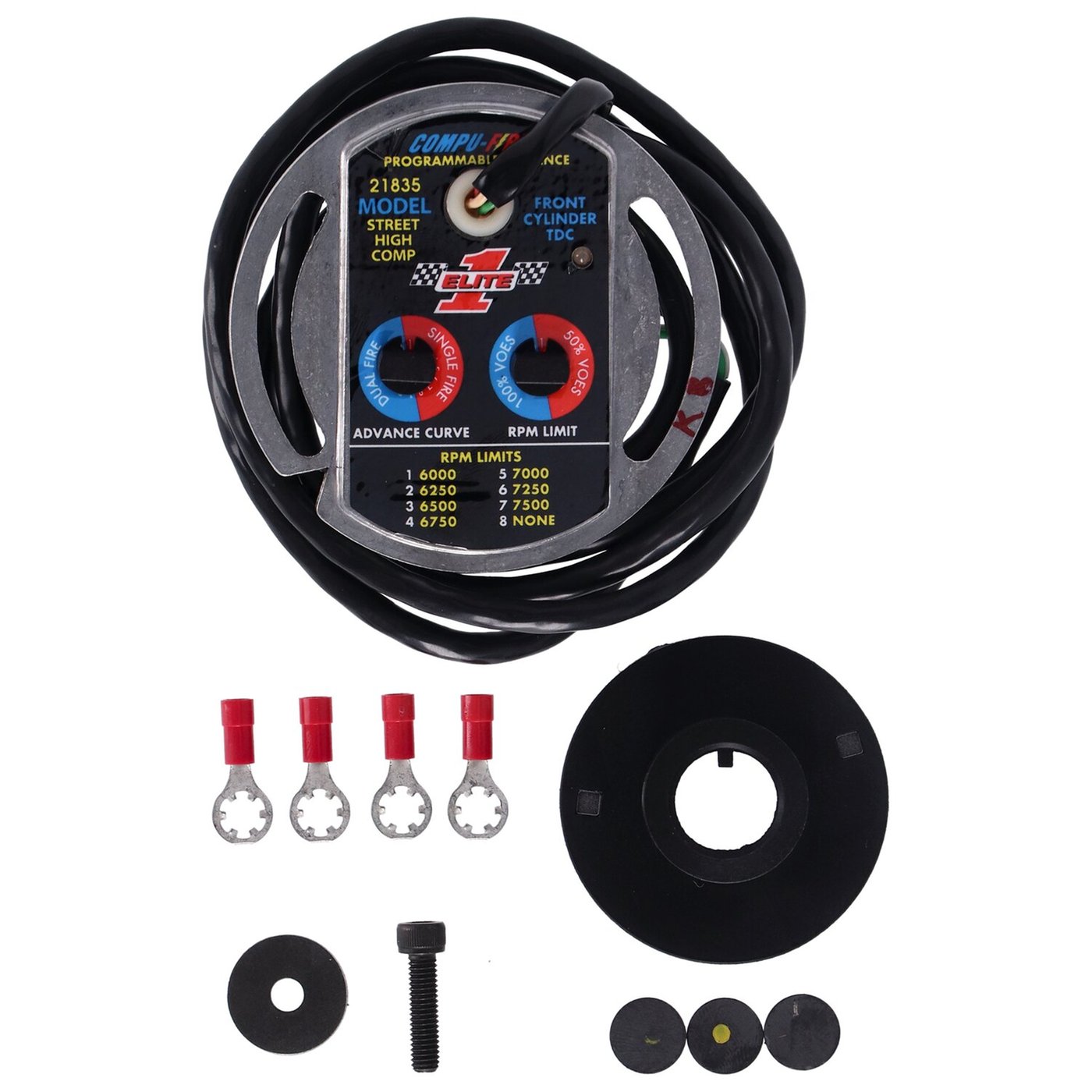

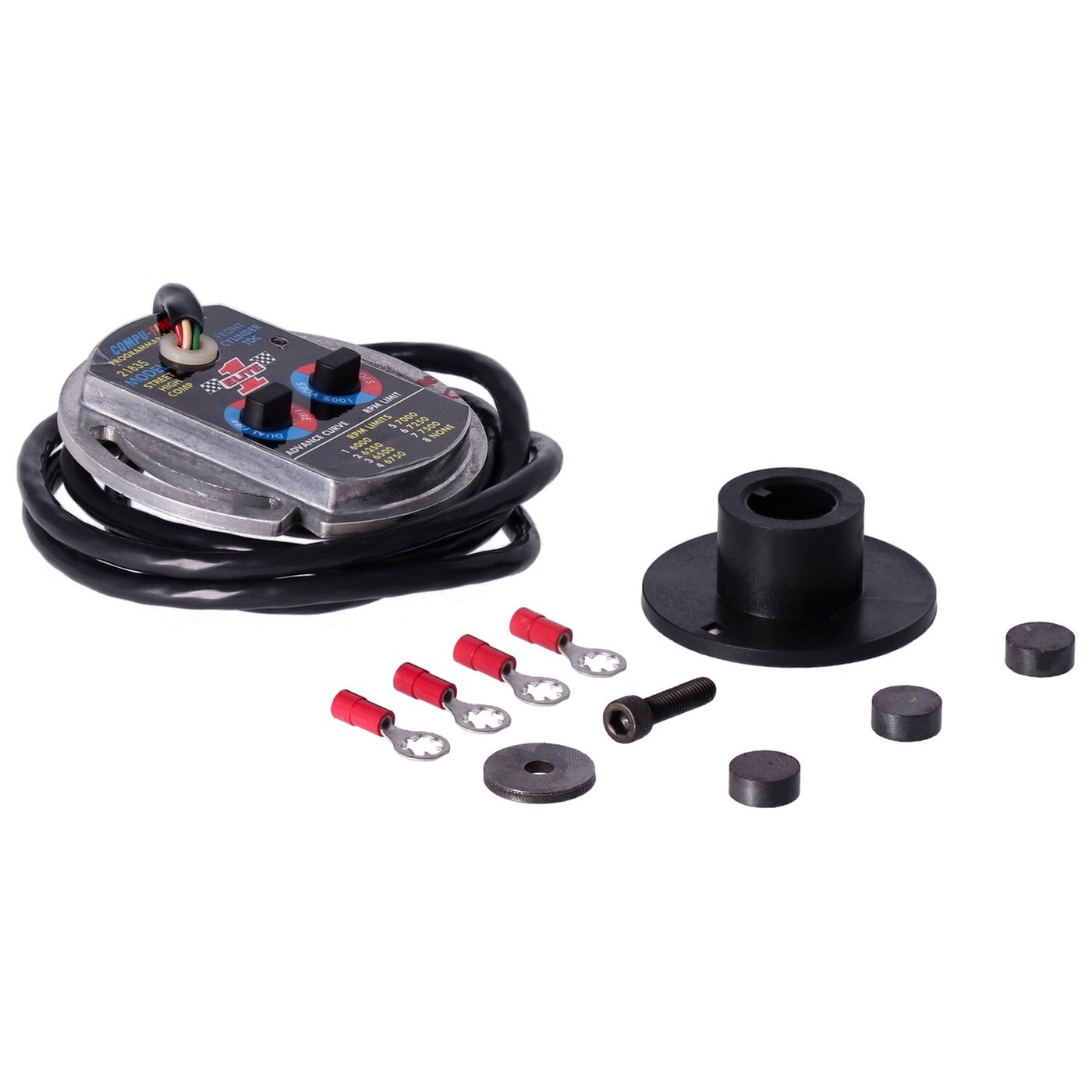

Compu-FireCompu-Fire, ignition module. Electronic advance. Kickstart  538406

fits  70-99 Big Twin (Excl. Twin Cam, Excl. injection models); 71-01 Sportster (Excl. 1200S) (NU)

Kickstart special, for use with kick start only. Sames as 538404 but with delayed timing to TDC below 300 RPM to prevent kickback. Comes with selectable single/dual fire and/or single/dual plug. Selectable advance & RPM limiter. With 8 advance curves and 8 RPM limits, from 6000 up to 7500 RPM, it can be adjusted to fit your specific engine. Easy selection by a rotary switch on the ignition unit. All modules come with a built-in static timing light and feature a extended temperature and low voltage operation. Note: A tach adapter (MCS 538408) is required to correct tacho-output when using single fire ignition, for correct RPM representation.
